Automatic Driveway Gate Cost in Sacramento: Swing vs Slide (2026 Guide)

Quick answer: which automatic driveway gate should you choose?

Choose a swing gate when the gate leaves have a clear opening arc and suitable hinges, posts and ground clearance. Choose a sliding gate when you have enough room alongside the driveway for the gate to retract, but limited space for a swing arc. Neither style is automatically right for a sloped driveway: the entire travel path, drainage and gate support must be evaluated.

For a typical residential swing application, LiftMaster LA400UL is a candidate; LA500UL serves residential and light-commercial swing applications with greater capacity. For sliding gates, RSL12UL is a residential option, CSL24UL targets high-traffic commercial use, HDSL24UL targets heavier and more demanding applications, and SL3000UL is an AC-powered commercial option. The pictured CSW24UL is a commercial swing operator—not a sliding gate motor.

The best quote starts with your actual gate, driveway and traffic pattern, not the largest motor or the cheapest kit. This guide separates a new gate installation from automating an existing gate and explains what Sacramento-area homeowners should ask before buying.

How much does an automatic driveway gate cost in Sacramento?

There is no verified single price for every Sacramento property. As a national planning benchmark, Angi's 2026 automatic gate installation guide reports a typical range of $2,380–$8,000. That is third-party national data, not A&M pricing, a Sacramento market average, or a promise that your project fits that range. Custom fabrication, substantial concrete or electrical work, and commercial access systems can exceed it.

A gate-only price, an operator-only price and a complete installed system are different purchases. Adding automation to a sound existing gate may involve less work than replacing the gate, posts and foundations; however, weak posts, worn hinges, damaged rollers or unsafe construction can eliminate that apparent saving. A dual swing gate also needs equipment for both leaves.

Request an itemized site-specific quote. An LA400UL, LA500UL or commercial slide operator may be sold in different packages, with different batteries, safety devices and accessories. An online operator-only price is not an A&M installed quote. Compare what is included rather than assuming all kits are equivalent.

• Angi's national automatic gate cost guide
• Request a driveway gate assessment

Swing gate vs sliding gate: space, slope and installation cost

A swing gate rotates around hinges. It needs a clear arc, strong posts and room for a waiting vehicle without obstructing the gate. A dual swing design divides the opening between two leaves, which can reduce each leaf's arc but adds a second actuator or operator and coordination between the leaves.

A sliding gate moves beside the opening. A ground-track system uses a prepared rolling path; a cantilever system supports the gate off the ground and needs extra side space and suitable foundations. Not all slide gates need a track across the driveway. Both types require secure guidance, end stops and protection at pinch and entrapment points.

A simple swing installation can cost less than a slide installation requiring new foundations and track work, but this is not a universal rule. Existing hardware, gate size, excavation and electrical distance can reverse the comparison. A slide gate is not automatically suitable for a hill: an inclined travel path can let a released gate move under gravity. For Auburn, El Dorado Hills or other hillside properties, have a gate specialist assess the travel path rather than treating a stronger motor as the solution.

Residential vs commercial gate openers: what actually changes?

Residential and commercial labels describe intended applications, but traffic, peak-hour demand and gate load matter more than the property's mailing address. A shared driveway, apartment entrance or busy business may require a different operator and access system from a single-family home. Count opening-and-closing cycles and consider busy periods, not just a daily average.

Duty cycle describes the operator's permitted workload. Continuous-duty equipment is designed for frequent use within its specifications; it does not mean any gate can run indefinitely without maintenance. Weight, length, wind exposure, friction and ambient conditions still affect performance. The manufacturer's usage class and installation manual must match the site.

A commercial operator can sometimes suit a residential estate with a heavy gate or demanding traffic. It is not automatically necessary, quieter or longer-lasting for every home. Correct mechanical design and safety protection are more important than buying extra horsepower to push a binding gate.

LA400 vs LA500 vs CSW24UL: LiftMaster swing gate options

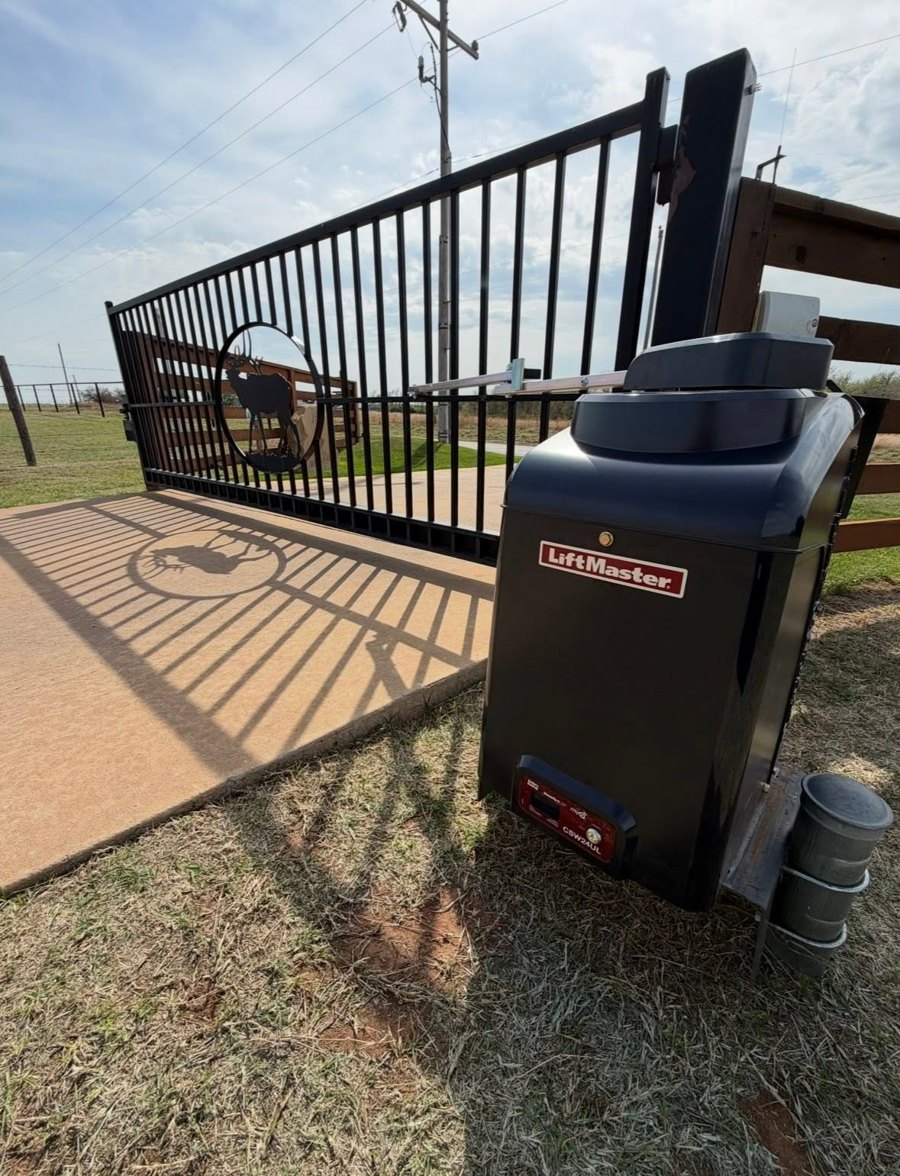

LA400UL and LA500UL use linear actuators mounted between the gate and supporting post. CSW24UL is a cabinet-style swing operator with an articulated arm, like the one in your article photo. These are different mounting arrangements; a replacement needs to match gate geometry, foundation, clearance and load, not just brand.

LiftMaster's published upper limits are a starting point, not a final sizing recommendation. Do not assume the longest and heaviest listed gate is an approved combination. Follow the exact model's capacity chart and account for wind on solid panels, condition of hinges and operating resistance.

• LiftMaster LA400UL specifications
• LiftMaster LA500UL specifications
• LiftMaster CSW24UL specifications

RSL12 vs CSL24 vs HDSL24UL vs SL3000: LiftMaster slide gate options

Homeowners often search for RSL12, CSL24 or SL3000 without the full suffix. This comparison uses the RSL12UL, CSL24UL, HDSL24UL and SL3000UL models. A shortened name is not enough to identify an older unit's control board, safety inputs, accessories or replacement parts; photograph the actual model label before requesting service.

RSL12UL is the residential slide option in this group. CSL24UL is designed for high-traffic commercial sliding gates. HDSL24UL adds heavy-duty capacity and variable speed for demanding slide applications. SL3000UL uses an AC motor rather than the DC battery-backed architecture of the other slide models discussed here; do not assume it has the same solar or backup behavior.

• RSL12UL installation manual
• LiftMaster CSL24UL specifications
• LiftMaster HDSL24UL specifications
• LiftMaster SL3000UL specifications

Solar vs wired power, battery backup and smart access

Solar can be useful when a compatible DC operator is far from electrical service. It may reduce the need to bring mains power to the operator, but it does not remove every wiring, trenching or site-work requirement. Panel exposure, shade, winter sunlight, gate cycles, battery condition and the constant draw of accessories all affect sizing. A sunny Sacramento summer is not a complete year-round power calculation.

Wired charging is often practical when power is nearby or demand is high. Battery backup is model-dependent and has limited capacity; age, temperature, gate load and accessory use affect available cycles. Discuss outage behavior, manual release and local emergency-access requirements before installation. A manually released gate can move unexpectedly on a slope, so learn the model-specific procedure from your installer.

Remotes, keypads, vehicle detection, intercoms and app access solve different needs. LiftMaster connectivity depends on the operator, gateway or access-control equipment, internet availability and sometimes a subscription. Ask which equipment and ongoing fees are included. Vehicle loops and access controls do not replace required entrapment protection.

Gate safety, permits and emergency access: what belongs in the quote?

Automatic vehicular gates can injure people at the moving leaf, posts, hinges, rollers and other pinch points. UL 325 addresses operator safety; ASTM F2200 addresses automated vehicular gate construction. A listed operator alone does not make the entire installation safe. A trained installer must assess all entrapment zones, select compatible monitored protection and test the completed system according to the current manual and applicable requirements.

Provide a separate pedestrian route. Do not use a vehicular gate as a walking entrance, let children play on it, bypass photo eyes or edges, or increase force to overcome a safety stop. If the gate drags, moves unpredictably, has damaged hardware or fails a safety test, keep people clear and stop automatic use until it is repaired.

Permit, setback, electrical and fire-access requirements vary by the city or county and the property's use. Sacramento, Roseville and unincorporated Placer or El Dorado County can have different requirements. Ask the relevant building and fire authorities before fabrication; do not assume a particular opening width or emergency-access device is accepted everywhere.

• DASMA automatic gate safety guidance
• ASTM F2200 automated vehicular gate standard

How long do gate operators last, and when is repair worthwhile?

There is no single lifespan guaranteed for every gate operator. Traffic, mechanical load, installation quality, moisture, heat, battery care and parts availability affect service life. A warranty period is not a prediction of how long your motor will last. Use the manufacturer's maintenance schedule and evaluate actual condition rather than replacing by age alone.

Swing systems need sound hinges, posts and arm geometry. Slide systems need secure rollers or cantilever supports, guidance and a clear travel path. Sacramento-area fall leaves, gravel and winter runoff deserve attention, but debris is not the explanation for every failure. Keep drainage clear and inspect from a safe distance; have a technician handle chain tension, internal electrical work and force or limit adjustments.

Repair can make sense when the gate structure and operator remain suitable, the fault is isolated and parts are available. Replacement may be more practical when critical parts are obsolete, failures recur, the duty rating no longer meets traffic needs or the installation needs significant safety upgrades. Get a diagnosis before replacing an entire operator for a battery, sensor, wiring or access-control problem.

• Driveway gate repair services

What should Sacramento homeowners send for a useful gate quote?

A&M Garage Door & Gate Service provides driveway gate service across Greater Sacramento. For an installation or repair assessment, share your city, photos of the whole opening and both sides of the gate, the operator's model label, approximate width, whether it swings or slides, and what happens when you try to operate it. Do not remove a cover or approach damaged moving equipment to obtain a photo.

Tell us whether this is a new gate, an automation retrofit or a repair, how many households use the entrance, whether power is nearby and which access options you want. For Sacramento, Natomas, Elk Grove, Roseville, Folsom, Granite Bay and hillside properties around Auburn or El Dorado Hills, the site assessment determines which design and operator are appropriate.

• Request a gate quote
• Sacramento driveway gate repair
• Roseville driveway gate repair
• Folsom driveway gate repair
